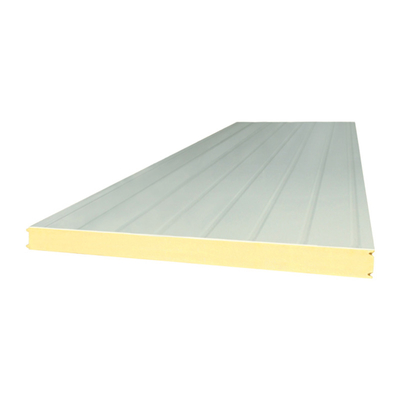

Industrial PU PIR Insulated Sandwich Panel For Cold Storage Cold Room Cool Storage

1 set
MOQ
Industrial PU PIR Insulated Sandwich Panel For Cold Storage Cold Room Cool Storage
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 Year
After-sale Service: Other, Installation Video
Project Solution Capability: graphic design, total solution for projects
Application: Warehouse
Design Style: Industrial
Model Number: 001
Panel Material: Metal
Thickness of pu panel:: 50mm,75mm,100mm,120mm,150mm, 200mm
Fire rating:: B2 grade
Width:: 960~2000mm
Temperature:: -45 Celsius~+20 Celsius
Density:: 45KG/m³±2KG
Packging detail:: Wood container packing or as customer's requirement
Model Number:: PU Sandwich Panel
Surface material:: Stainless steel or color steel
Color:: White, blue, optional
Product name: PU Sandwich Panel
기본 정보
Model Number: 001, PU Sandwich Panel
결제 및 배송 조건
Packaging Details: Customaztion
Supply Ability: 1000 Set/Sets per Year
제품 설명
Applications
Warranty
1 Year
After-sale Service
Other, Installation Video
Project Solution Capability
graphic design, total solution for projects
Application
Warehouse
Design Style
Industrial
Place of Origin
China
Brand Name
YC
Model Number
001
Panel Material
Metal
Thickness of pu panel:
50mm,75mm,100mm,120mm,150mm, 200mm
Fire rating:
B2 grade
Width:
960~2000mm
Temperature:
-45 Celsius~+20 Celsius
Density:
45KG/m³±2KG
Packging detail:
Wood container packing or as customer's requirement
Model Number:
PU Sandwich Panel
Surface material:
Stainless steel or color steel
Color:
White, blue, optional
Product name
PU Sandwich Panel

1. Cold Room Panels For Cold Room

Good waterproof performance Polyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a
closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture
absorption, and the wall surface will also seep.
Good sound insulation The porosity of the polyurethane material is stable and basically closed-cell structure, which not only has
excellent heat preservation performance but also has resistance to freezing and thawing and sound absorption.
Strong resistance to deformation Strong resistance to deformation, not easy to crack, stable and safe finish.
Fire retardant and high-temperature resistant Polyurethane is a flame-retardant self-extinguishing material after adding flame
retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.
Product Name
PU sandwich panel
Surface Material
Color steel(PPGI), stainless steel, aluminum
Core material
Polyurethane foam
PU density
45±2KG/m3
Fire grade
B2
Width
standard width 960mm
Length
Customized, maximum 11980mm
Thickness
50/75/100/150/200mm
Panels thickness (mm)
Temperature gap between internal-external environment
Height of wall panel (max)
Roof length (max)
50mm
30ºC
3.5m
2.4m
75mm
40ºC
4.5m
3.8m
100mm
50ºC
5.0m
4.5m
120mm
60ºC
5.5m
6.0m
150mm
70ºC
6.0m
6.5m
200mm
90ºC
7.0m
7.6m
If there is a pressure gap between the internal-external environment without wind load, over-length or wind-load need to set steel
wall beam.
Tips: the data above is figured out according to 8-10 W / heat flux.
Projects For Ref

FAQ

1. Can you customize the cold storage room dimension and temperature?
Yes, we can customize the cold room dimension and temperature according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, our engineer can design it for you.
2. Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.
3. What brand compressor can you offer?
Normally with original Bizter and Copeland compressor. Famous in the world.
4. How about the delivery time?
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 workdays.
Time will be shorter if you are in a hurry.

Product Explanation:

Low-temperature quick-freezing is the key to long-term high-quality preservation of food. Rapid cooling can make food quickly pass
through the ice crystal formation zone, prevent the formation of large ice crystals in food cells, avoid damage to the cell wall,
and perfectly maintain the original quality and taste of the food. The temperature of the quick-freezer is generally -15 ° C ~
-35° C. It is mainly used for low temperature and rapid freezing of food, medicine, medicine, and other items. Cooling down
quickly and the preservation effect is good.

We need to know this information!

1: What's the dimension of cold room: Length×Width×Height by Meter
2: What kind of goods will load inside? What's the indoor temperature?
3: What's the industry voltage?
